1. Summary

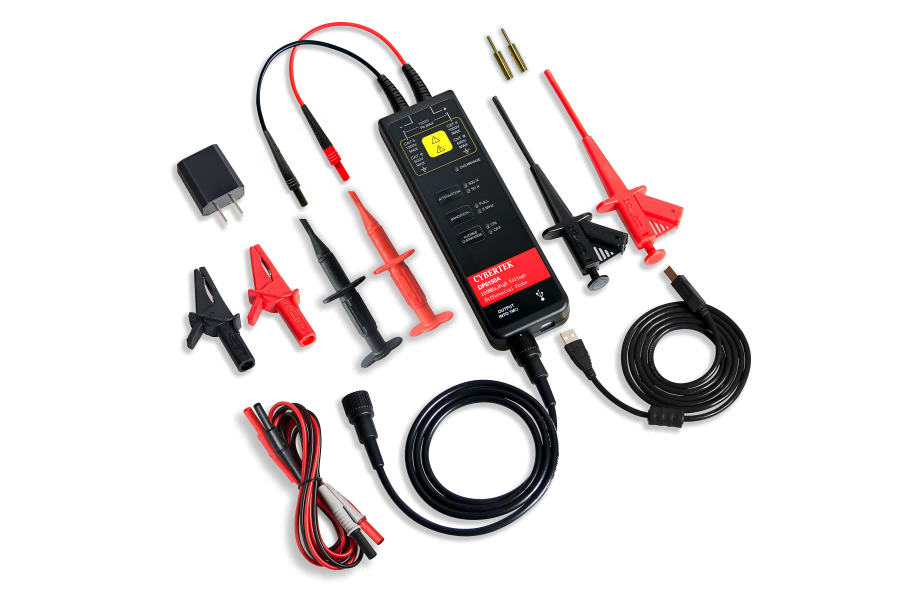

DP6000 Series High Voltage Differential Probes are designed for the measurement of high voltage differential signal, to meet the demand for floating measurement.
The probes have a max 200MHz bandwidth and 7000V differential voltage which can meet the majority measurement applications.
The users can adjust the offset output voltage of the probe.
The 5MHz bandwidth limit function can remove the higher frequency noise and interference;
The probe has sound & light alarming function which can also be turned off manually
It can be powered by USB port, which is convenient for the customers;
The probe is standard BNC output port which can be connected to oscilloscope of any brand.
The probes have great CMRR which is very important in many power electronics applications.
Model | DP6070A | DP6150A | DP6350A | DP6700A | ||||||
Bandwidth(-3dB） | 100MHz | |||||||||
Rise time | ≤3.5ns | |||||||||
Accuracy | ±2% | |||||||||
Range selection (Attenuation rate) | 10X/100X | 50X/500X | 100X/1000X | 100X/1000X | ||||||
Maximum differential voltage(DC + Peak AC) | 10X | ±70V | 50X | ±150V | 100X | ±350V | 100X | ±700V | ||
100X | ±700V | 500X | ±1500V | 1000X | ±3500V | 1000X | ±7000V | |||
Common mode voltage (Vp) (DC + Peak AC) | ±700V | ±1500V | ±3500V | ±7000V | ||||||
Maximum differential mode VS frequency curve | Reference Figure 1 | Figure 2 | Figure 3 | Figure 4 | ||||||
Maximum input voltage-to-earth (Vrms) | 450V CATII 600V CATI* | 600V CATIII 1000V CATII | 600V CATIII 1000V CATII | 1000V CATIII 2300V CATI* | ||||||
Input impedance | Single-ended to ground | 2.5MΩ | 5MΩ | 5MΩ | 20MΩ | |||||
Between inputs | 5MΩ | 10MΩ | 10MΩ | 40MΩ | ||||||
Input capacitance | Single-ended to ground | ＜4pF | ＜4pF | ＜4pF | ＜5pF | |||||
Between inputs | ＜2pF | ＜2pF | ＜2pF | ＜2.5pF | ||||||
CMRR | DC | ＞80dB | ＞80dB | ＞80dB | ＞80dB | |||||
100kHz | ＞60dB | ＞60dB | ＞60dB | ＞60dB | ||||||
1MHz | ＞50dB | ＞50dB | ＞50dB | ＞50dB | ||||||
Noise(Vrms) | 10X | ＜25mV | 50X | ＜50mV | 100X | ＜100mV | 100X | ＜220mV | ||
100X | ＜120mV | 500X | ＜300mV | 1000X | ＜600mV | 1000X | ＜1.2V | |||
Differential overvoltage detection level | 10X | ≥70V | 50X | ≥150V | 100X | ≥350V | 100X | ≥700V | ||
100X | ≥700V | 500X | ≥1500V | 1000X | ≥3500V | 1000X | ≥7000V | |||
Propagation time | Probe | 10X | 8.7ns | 50X | 8.5ns | 100X | 8.2ns | 100X | 8.9ns | |
100X | 8.1ns | 500X | 7.5ns | 1000X | 7.4ns | 1000X | 6.6ns | |||
BNC Line(1m) | About 5ns | |||||||||
Bandwidth limit filters (5MHz) | ≥-3dB@5MHz | |||||||||
Overload indicator (red light） | Yes | |||||||||
Overload alarm | Yes(Can shut up manually) | |||||||||
Automatic save | Yes | |||||||||
Offset setting function | Yes（ Set in test mode） | |||||||||
Terminate load | ≥100kΩ | |||||||||
Power supply | USB 5V/1A adapter | |||||||||
Safety standard | IEC/EN 61010-031:2015 + AMD1:2018 | |||||||||
EMC standard | EN61326-1:2013 EN61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2013 | |||||||||
*CAT I per IEC/EN 61010-031/A1:2008. No Rated Measurements Category per IEC/EN 61010-031:2015 + AMD1:2018.
